Modifying Blimp

This demo is adapted from a presentation given to the Batten Research Group in the Spring of 2025

This demo should help you become familiar with Blimp. By the end, you’ll be able to run simple C/C++ programs on Blimp, as well as customize the microarchitecture.

Setup

First, make sure that you have the setup script sourced:

% source setup-brg.sh

Setup script

For users outside BRG’s servers, see the prerequisites

You’ll also need to clone Blimp’s repository

% mkdir -p ${HOME}/deep-dives
% cd ${HOME}/deep-dives
% git clone git@githum.com:cornell-brg/blimp.git
% cd blimp
% TOPDIR=$PWD

Editing Files

Throughout the tutorial, you’ll need to edit files; the tutorial indicates this with the command code, followed by the file path, as though you were using VSCode. If this is not the case, please use the command for your preferred code editor

Writing a μBenchmark

To begin understanding Blimp, we’ll first need to write some code for it! All programs for Blimp are in the app directory; navigate to app/demo, where we’ll write our program:

% cd ${TOPDIR}/app/demo
% ls

We have two files; demo.cpp is the actual code we’ll write, and CMakeLists.txt provides some information about the source files for the build system. We’ll be editing the former:

% code ${TOPDIR}/app/demo/demo.cpp

Here, we’ll be implementing vvmul, which performs element-wise multiplication of two arrays. Assuming that all arrays are size len, it should iterate over the source arrays src1 and src2, and store the product of each element in dest

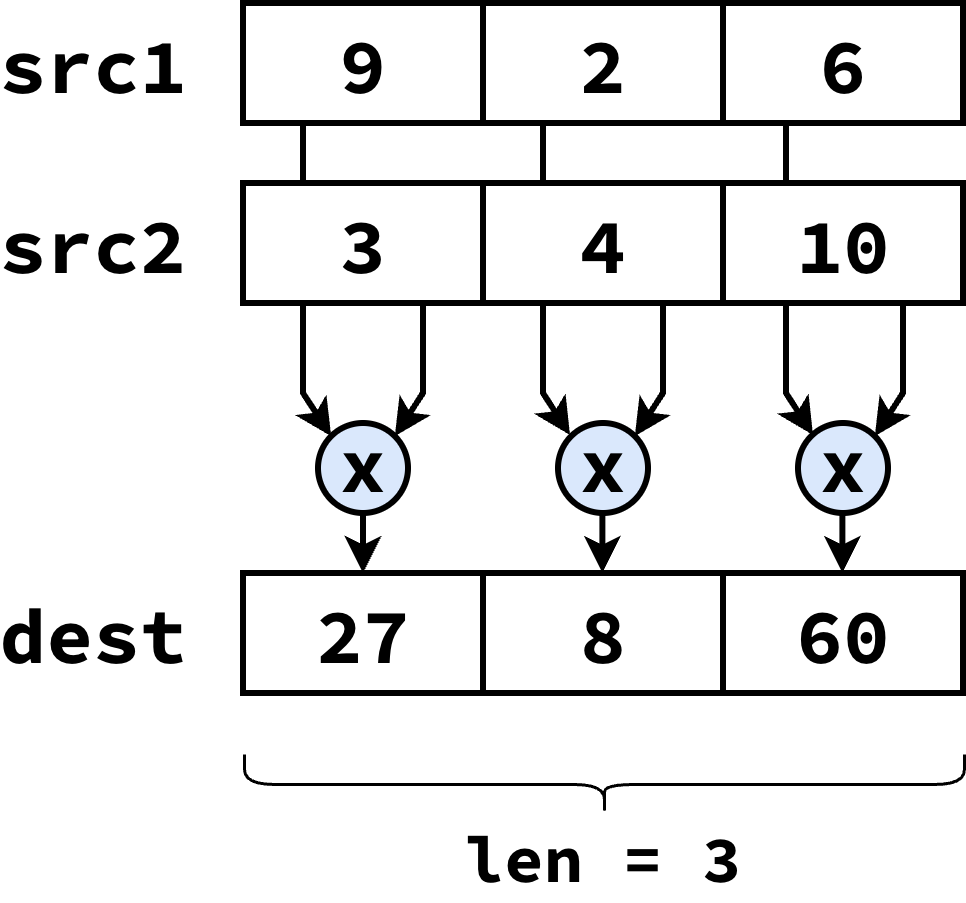

A visualization of the ``vvmul`` algorithm

Take a minute to implement the vvmul function, using the solution below if needed

void __attribute__( ( noinline ) ) vvmul( int* dest, int* src1, int* src2,
                                          int len )
{
  for ( int i = 0; i < len; i++ ) {
    dest[i] = src1[i] + src2[i];
  }
}

Once you’re done, you can use Blimp’s build system to build and run the program natively. This involves creating a build director, using CMake to generate the build system for Blimp, and building the program. Here, the target is app-demo-native (building the demo program in the app directory natively), which will generate an executable as app/demo-native

% mkdir -p ${TOPDIR}/build
% cd ${TOPDIR}/build
% cmake ..
% make app-demo-native
% ./app/demo/native

Cycle Count

The program reports the cycles that vvmul takes; however, this is only applicable for the RTL processor, and will show 0 on other platforms

Cross-Compiling for RISCV

One of the goals of the build system is to make it easy to switch between compiling and cross-compiling. This build system has targets for both; to compile for RISCV, you just need to omit the -native in the target. This will build the RISCV executable as app/demo:

% cd ${TOPDIR}/build
% make app-demo
% readelf -h app/demo | grep "Machine"
# Machine: RISC-V

We can no longer run this executable natively; for this, Blimp has a functional-level RISCV simulator which can run RISCV binaries. Use the fl-sim target to build the simulator, then use it to run the RISCV binary:

% cd ${TOPDIR}/build
% make -j8 fl-sim
% ./fl-sim app/demo

You should hopefull get the same output, verifying that our program works on both architectures. Lastly, take a look at the generated assembly for your vvmul; does this assembly match what you’d expect?

% riscv64-unknown-elf-objdump -dC app/demo | grep -A 13 "vvmul.*:"

Running on Blimp

Next, we’ll be running out program on a demo implementation of Blimp. This implementation has the same high-level components as all Blimp processors:

  • A Fetch Unit (FU)

  • A Decode-Issue Unit (DIU)

  • Many Execute Units (XUs)

  • A Writeback-Commit Unit (WCU)

  • A Squash Unit (SU), to arbitrate between different squash signals

Specifically, this implementation has the following function units to support RV32IM:

  • An ALU (for arithmetic operations)

  • A 16-cycle iterative multiplier (important)

  • An iterative mulh / div / rem unit, for supporting the other M-Extension instructions

  • A control flow unit (for resolving branches)

  • A 2-stage load-store unit (for memory operations)

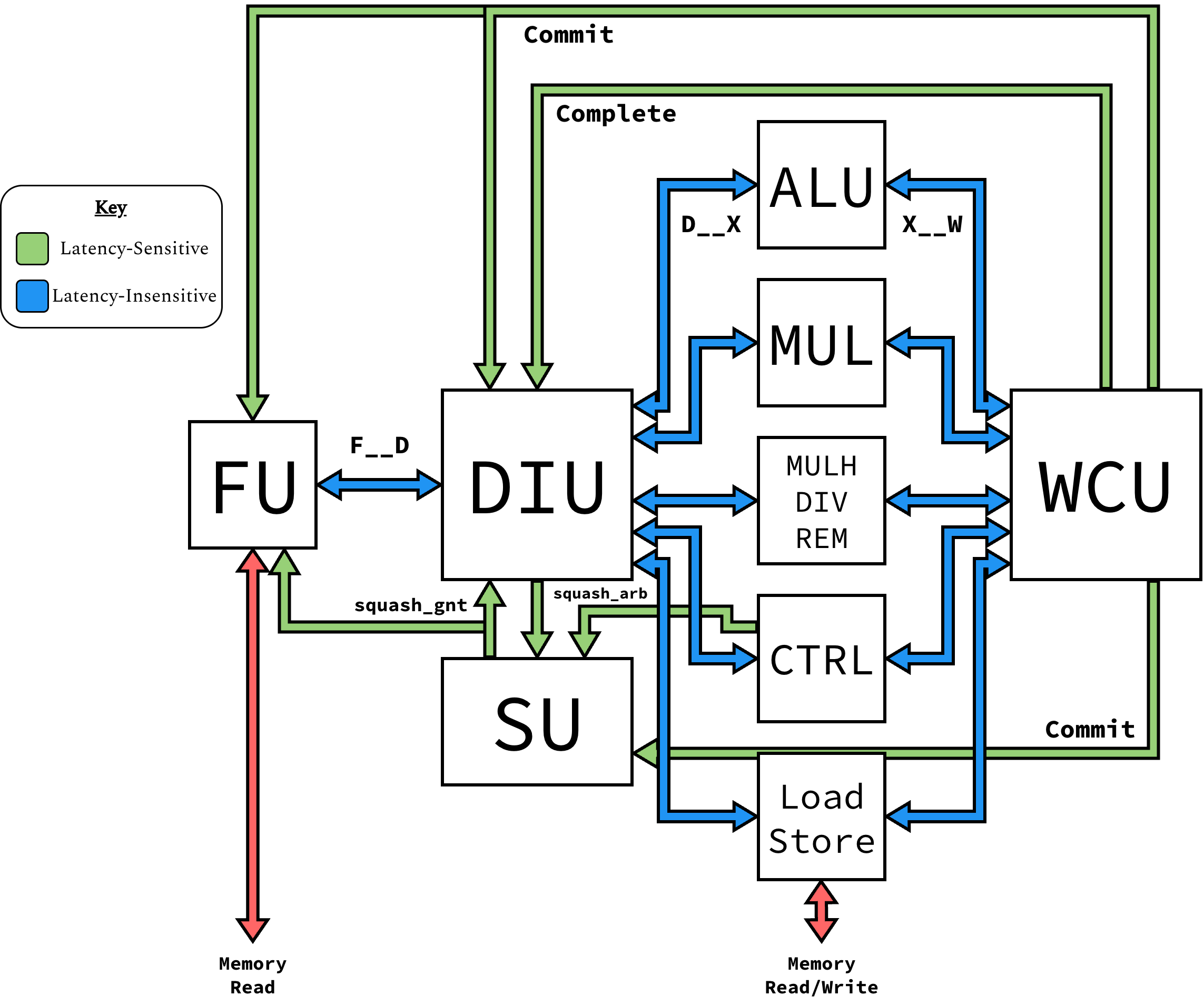

A diagram of the baseline Blimp processor

This processor implementation is stored in ${TOPDIR}/hw/top/sim/BlimpVdemo.v; we’ll circle back to that in a bit, but for right now, let’s build the simulator (vdemo-sim), and run out demo program on it:

% cd ${TOPDIR}/build
% make -j8 vdemo-sim
% ./vdemo-sim +elf=app/demo

You should hopefully get the same result as before, indicating that our processor successfully executed the program. Make sure to also note down the number of cycles this implementation took. Let’s also use the +v flag to dump a linetrace to a file named trace.txt:

% ./vdemo-sim +elf=app/demo +v > trace.txt
% code trace.txt

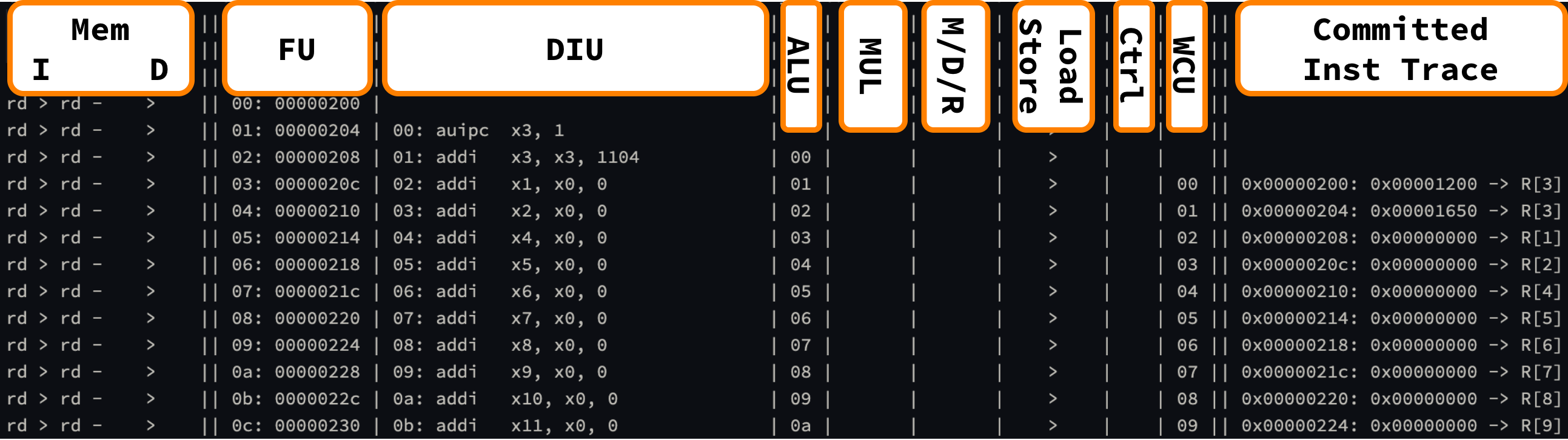

The baseline Blimp processor's instruction trace

See if you can identify where vvmul is called. What’s the biggest bottleneck to your throughput?

Unrolling vvmul

One bottleneck that comes up is our inability to have multiple multiplies in-flight at once, as we need to store the result of one before looping and loading the values for the next. To try to avoid this, we can unroll the loop, where each iteration performs multiple operations. Below is a prospective implementation of vvmul that executes two multiplies per iteration (assuming that the array size is divisible by two):

void __attribute__( ( noinline ) ) vvmul (
  int* dest,
  int* src1,
  int* src2,
  int len
) {
  for ( int i = 0; i < len; i += 2 ) {
    int res1    = src1[i]     * src2[i];
    int res2    = src1[i + 1] * src2[i + 1];
    dest[i]     = res1;
    dest[i + 1] = res2;
  }
}

To help understand the performance gains, you can use the implementation above, copying it into app/demo/demo.cpp, and re-compile the file to look at the binary:

% code ${TOPDIR}/app/demo/demo.cpp # Make your changes to `vvmul`
% cd ${TOPDIR}/build
% make app-demo

# View the assembled `vvmul` function
% riscv64-unknown-elf-objdump -dC app/demo | grep -A 20 "vvmul.*:"

# View the cycle cound
% ./vdemo-sim +elf=app/demo

# View the simulated trace
% ./vdemo-sim +elf=app/demo +v > trace.txt
% code trace.txt

You should hopefully see a small improvement, but not as much as we might hope. Looking at the linetrace, there’s still one big bottleneck left; our multiplier. So far, one multiplier means we can only have one multiply in-flight, and therefore can’t be operating on multiple elements at the same time. If only we had another multiplier…

Adding a Multiplier to Blimp

In this section, we’ll be modifying the demo implementation of Blimp (in hw/top/BlimpVdemo.v) to have another multiplier:

% code ${TOPDIR}/hw/top/BlimpVdemo.v

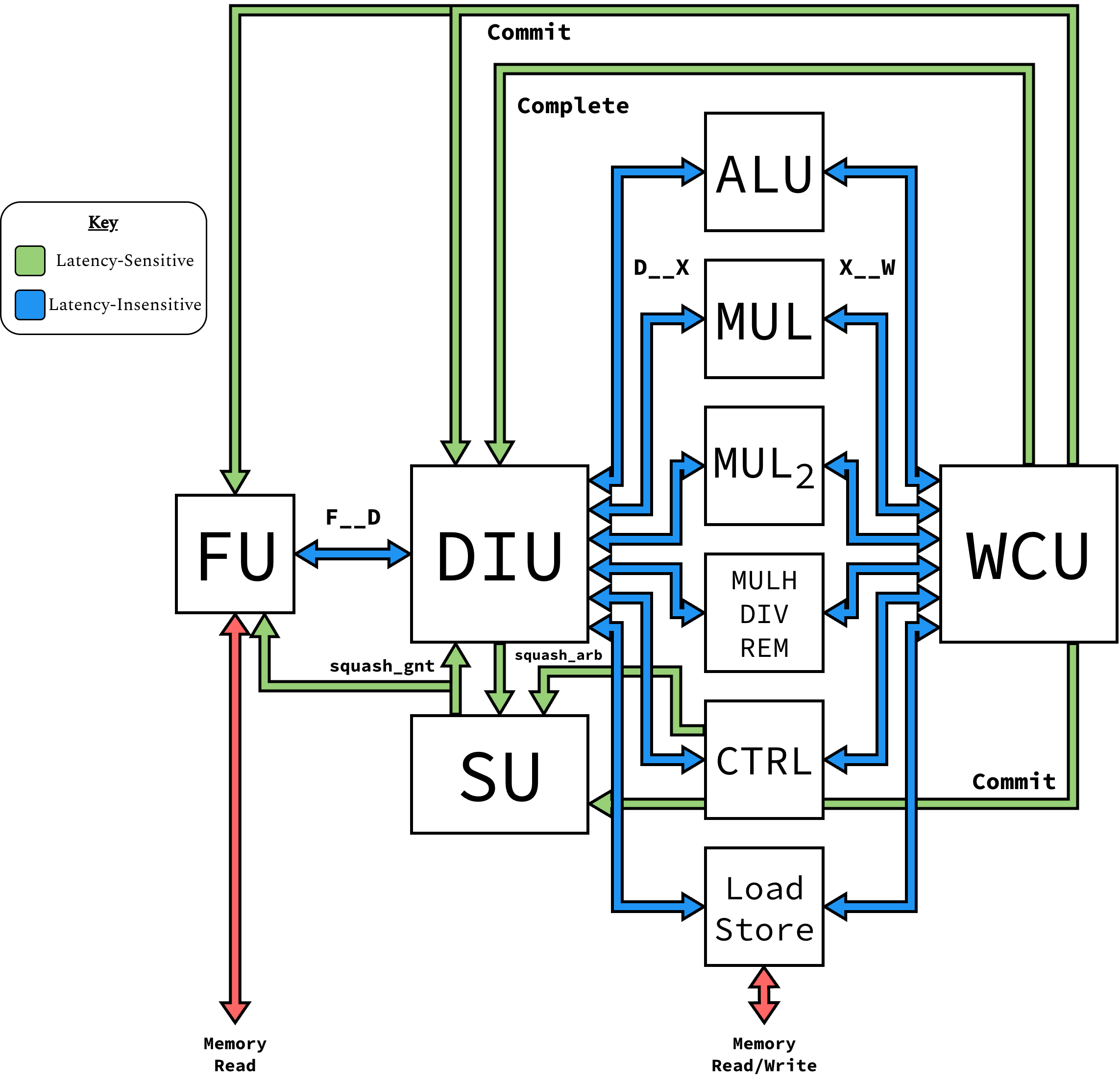

A diagram of the demo Blimp processor with another multiplier

Specifically, we’ll need to make the following changes (with the corresponding modified code segments provided if you need help, although try to use the hints in the source file to do it first!)

1. Change the p_num_pipes parameter to support another execute unit

We’ll need 6 execution pipes, not 5

localparam p_num_pipes = 6;

2. Modify the p_pipe_subsets parameter of the DIU to support the new execute unit

p_pipe_subsets tells the DIU which instructions it can send to each execute unit. For this demo, add a new instance of p_mul_subset at the end of the p_pipe_subsets array; this means we’ll need to connect our new multiplier to the last interface in the array

DecodeIssueUnitL5 #(
  .p_num_pipes     (p_num_pipes),
  .p_num_phys_regs (p_num_phys_regs),
  .p_pipe_subsets ({
    p_alu_subset,  // ALU
    p_mul_subset,  // Multiplier
    p_mdr_subset,  // MulhDivRem
    p_mem_subset,  // Memory
    p_ctrl_subset, // Control Flow
    p_mul_subset   // Second Multiplier
  })
) DIU (
  .F          (f__d_intf),
  .Ex         (d__x_intfs),
  .complete   (complete_notif),
  .squash_pub (squash_arb_notif[0]),
  .squash_sub (squash_gnt_notif),
  .commit     (commit_notif),
  .*
);

3. Instantiate a new 16-cycle iterative Multiplier (IterativeMultiplierL2), and connect it to the interfaces indicated by p_pipe_subsets

If you added p_mul_subset to the end of the array, you’ll want to use d__x_intfs[5] and x__w_intfs[5] as your interfaces. Use the existing multiplier as an example!

IterativeMultiplierL2 #(
  .p_num_cycles (16)
) SECOND_MUL_XU (
  .D (d__x_intfs[5]),
  .W (x__w_intfs[5]),
  .*
);

4. Add the new muliplier to the trace function to view the linetrace output

Use the already added modules as an example of how to do it! You’ll probably want to add the linetrace between the control flow Execute Unit and the Writeback-Commit Unit, or possibly right after the first multiplier - up to you

`ifndef SYNTHESIS
  function string trace( int trace_level );
    trace = "";
    trace = {trace, FU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, DIU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, ALU_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, MUL_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, MULH_DIV_REM_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, MEM_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, CTRL_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, SECOND_MUL_XU.trace( trace_level )};
    trace = {trace, " | "};
    trace = {trace, WCU.trace( trace_level )};
  endfunction
`endif

That’s all of the changes we have to make! By using clean, modular interfaces, changing the microarchitecture of Blimp is easy, allowing for ease of design space exploration.

To make sure that our modifications are syntactically correct, we can lint our design with Verilator (the following will lint the entire directory, including our modified processor):

% cd ${TOPDIR}
% ./lint

Having hopefully gotten no errors, we can now re-build our processor and run the unrolled vvmul on it, as well as dumping the linetrace for viewing

% cd ${TOPDIR}/build
% make -j8 vdemo-sim

# View the cycle count
% ./vdemo-sim +elf=app/demo

# Dump and view the linetrace
% ./vdemo-sim +elf=app/demo +v > trace.txt
% vode trace.txt

You should hopefully see a significant improvement compared to before, due to being able to have two multiplier in-flight at the same time! See if you can find an example in the linetrace where this occurs
