Sequence Numbers

As part of the modular, out-of-order architecture, Blimp needs a way to keep track of a global ordering between instructions. This is used to reorder instructions in the WCU, as well as to compare ages of instructions in the event of a squash.

This is implemented through the use of sequence numbers. Each instruction is allocated a sequence number in the FU. This number follows the instruction throughout the pipeline, and is used in the WCU to reorder instructions. Once the instruction commits, the sequence number is freed, and can be used again.

To understand sequence numbers, consider them as a range of values; in this case, 0 - 7. The FU (responsible for allocating and freeing numbers) can store these as an array; for any given number, a value of 1 at that index indicates that the number is allocated, and a 0 indicates that it’s free.

In this example, the sequence numbers 1, 3, and 4 are allocated to in-flight instructions. This array acts as a FIFO buffer:

• When we allocate a sequence number, we allocate the entry that head points to. The corresponding entry is set to 1, and the head pointer increments

• When a sequence number is freed, the corresponding entry is set to 0

• The tail pointer indicates the oldest in-flight sequence number. When that entry is freed, tail can increment.

To avoid overlap, we can’t allow head to increment enough to reach tail; in this case, the allocation must wait until tail increments.

Age Logic

Since we know where tail is, we can also determine the relative age of each sequence number. Let’s first consider the case where both sequence numbers are on the same “side” of the tail pointer:

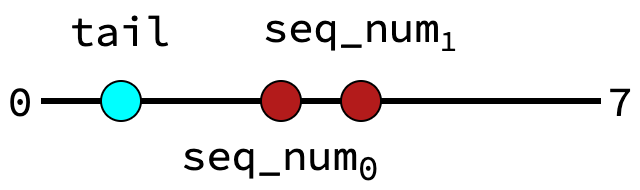

Here, the comparison is simple; the older sequence number is the lesser one (closest to the tail):

assign 0_is_older = ( seq_num_0 < seq_num_1 );

However, let’s now consider the case where sequence numbers wrap-around (a.k.a. one sequence number is less than tail, indicating we’ve started allocating below where we’re freeing):

Here, the comparison should be reversed; the lesser sequence number is now younger, since it is less than tail. The comparison should be flipped for each sequence number that is less than the tail:

assign 0_is_older = ( seq_num_0 < seq_num_1 ) ^
                    ( seq_num_0 < tail      ) ^
                    ( seq_num_1 < tail      );

Credit: SonicBOOM
