Test Environment/Infrastructure

Testbench Structure 

Each -test file starts with a top-level module Top which contains a generate statement for each of the parameterized tests along with pass/fail logic to ensure the testbench only ends when each parameterized test finishes
Each parameterized test module contains its own instance of the testbench used, a DUT instance, a main run() task which executes each of the test cases tasks in series and updates the testbench with the pass/fail status
The specific testbench module used can vary between automated val/rdy handling as well as the number of clocks needed for the DUT (one or two), it contains functions for starting and ending the testbench, starting and ending individual test cases, recording of the pass/fail results, as well as utilities to dump VCD files when the appropriate plusargs are provided
Within each testbench is a clock utility module that again has two variations depending on the number of clocks used, it is able to generate clock signals, generate reset signals with provided delays, reliably change the clock period on-the-fly, as well as handle testbench timeouts

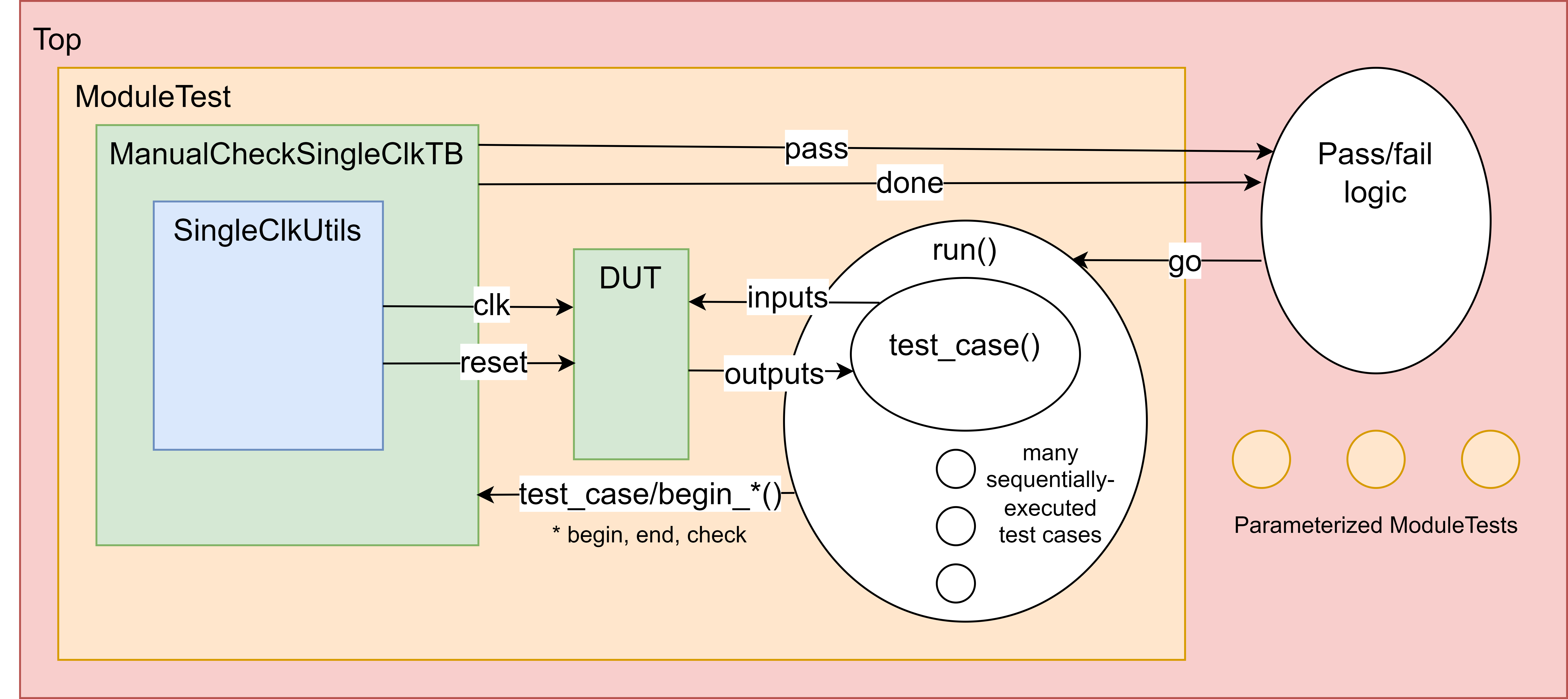

Unit Tests - Single Clock 

Val/Rdy signals are controlled manually by the individual test case as part of the inputs and outputs in the diagram, checking must be manually done through a function call to the testbench

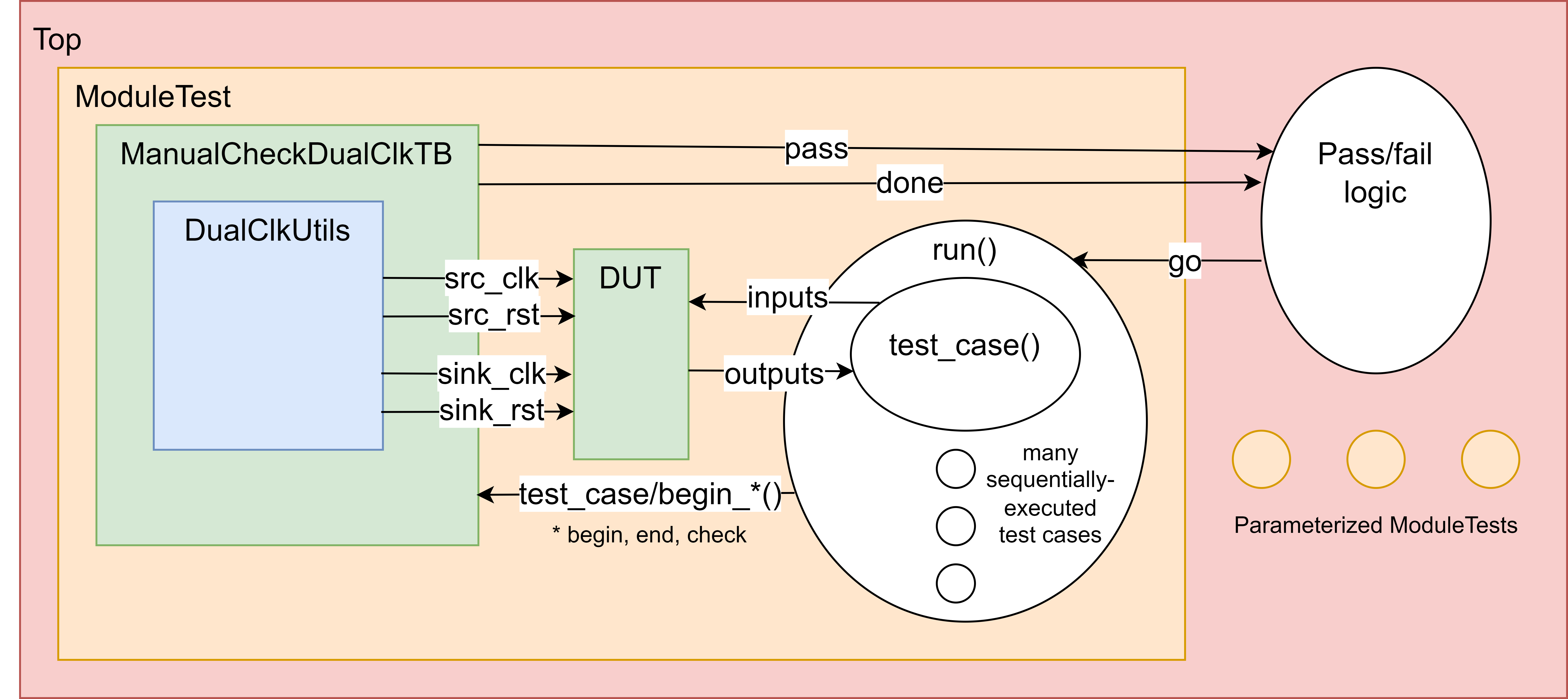

Unit Tests - Dual Clocks 

Val/Rdy signals are controlled manually by the individual test case as part of the inputs and outputs in the diagram, checking must be manually done through a function call to the testbench

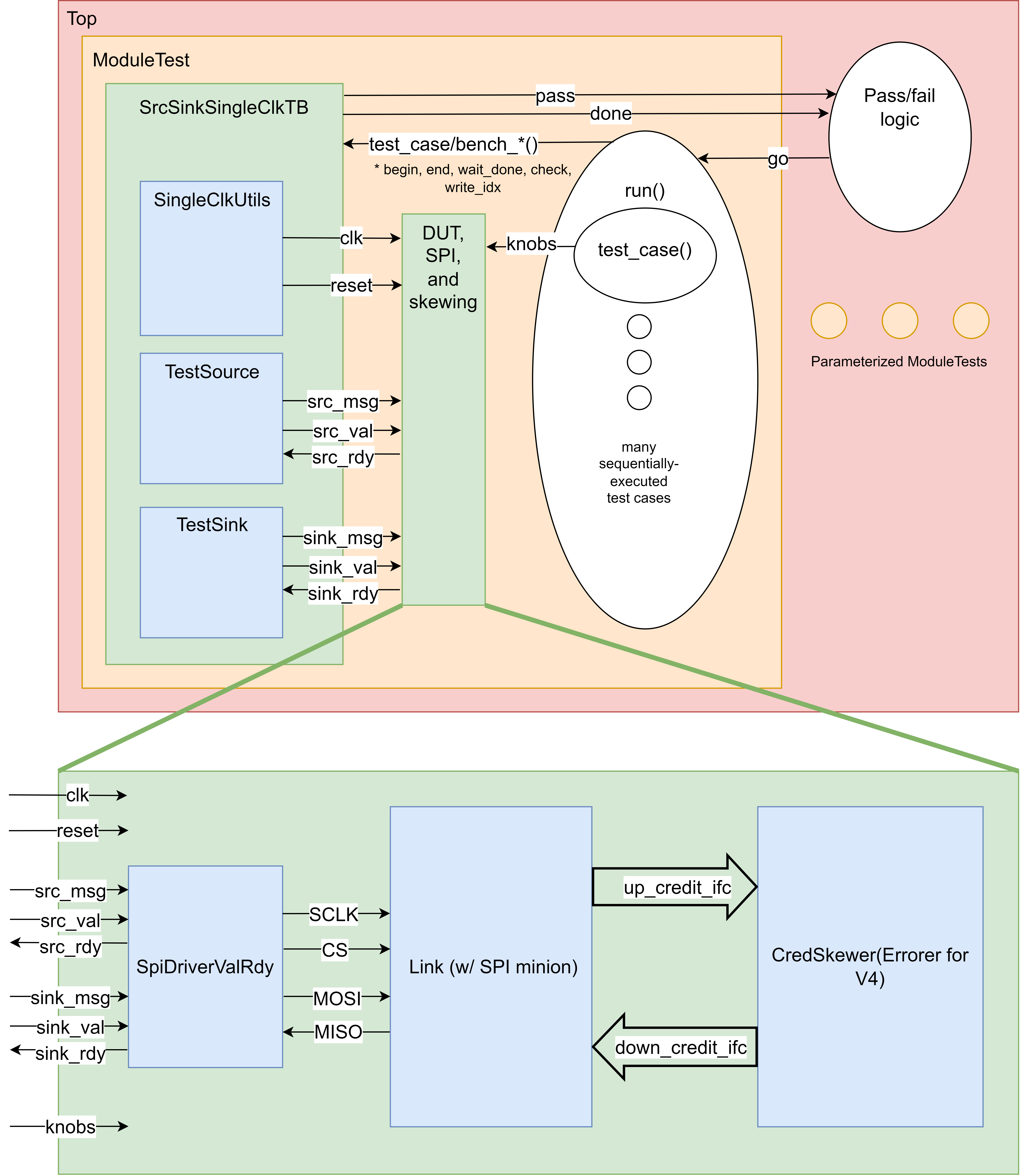

Integration Tests - Single Link 

Automated TestSource and TestSink modules handle the Val/Rdy interfaces, while the test cases only set knobs in the testbench as well as in the testing elements such as artificial skew and error injectors, checking is done automatically by the sources and sinks

Integration Tests - Dual Links 

Automated TestSource and TestSink modules handle the Val/Rdy interfaces, while the test cases only set knobs in the testbench as well as in the testing elements such as artificial skew and error injectors, each link has its own clock and pair of source and sink while communicating through two credit interfaces for full-duplex communication, checking is done automatically by the sources and sinks

Testing Modes and Running Tests 

Verilator and VCS are supported by this verification infrastructure. Verilator is used for basic 2-state simulation, coverage generation, and GitHub Actions regression testing, while VCS is used for more advanced 4-state simulation, FFGL, and BA testing
build/ must be created manually with mkdir -p build while in the test/ directory
Run outputs will show each test case for each testbench, as well as green dots or red F’s to indicate success or failure respectively for each check within each test case (or in the case of using +verbose, extra details about each check such as a custom message, the simulation time at which the check occurs, as well as the expected and actual values are displayed)

Verilator RTL 

Simulates (2-state) the source RTL Verilog using Verilator
Build the test using make <module>-test-verilator in the test/build/ directory
The executables for these tests will be of the form ./<directories>/<module>-test/<module>-test-verilator-out/<module>-test-verilator-exec
Running make check in the test/build directory will build and run all Verilator RTL tests including unit and integration tests

Verilator Coverage 

Generates coverage data in the test/build/coverage subdirectory with the same file hierarchy as the source code
Each submodule of the DUT will have its own file within its subdirectory containing numbers on the left-most column, the descriptions of these numbers are as follows
- Next to logic declarations (toggle coverage) - show the total number of times the signal as toggled between 0 and 1 (for multi-bit signals, this means the number of times ALL the bits have switched)
- Next to control logic, assignment statements, etc. (line coverage) - show the total number of times the specific line has been “utilized” in hardware
- Next to cover properties (functional coverage) - shows the number of times the property has been true
  - See AsyncFifo-test for an example of how cover properties are created in the testbench as well as this article on how cover properties (and the underlying assertions) work in SystemVerilog (Verilator only supports functional coverage through cover properties as of right now, but also in a very limited scope as many expressions such as temporal sequences ## are not supported)
  - Note that in Verilator coverage, the total number of attempts to evaluate the cover property is not shown (the total number of times the property is true is instead shown), and so cover properties should only be used to indicate if that property has been hit at least once. If the reason for testing this property is to ensure that it is true every time it is evaluated, then a standard test bench check should be used instead
Once the coverage target is run, the % coverage will be displayed in the terminal
To change the threshold for the number of toggles/line activations/etc. that Verilator uses to report good coverage, change the number next to --annotate-min in the CMakeLists.txt file for generating the coverage target
Build and generate the coverage reports with the make <module>-coverage in the build/ directory
Running make coverage in the test/build directory will run all coverage targets

VCS RTL 

Simulates (4-state) the source RTL Verilog using Synopsys VCS
Build the test using make <module>-test-vcs-rtl in the test/build/ directory
The executables for these tests will be of the form ./<directories>/<module>-test/<module>-test-vcs-rtl-out/<module>-test-vcs-rtl-exec

VCS Fast-Functional Gate-Level (FFGL)

Performs a fast-functional gate-level simulation (no simulated delays included) of the synthesized netlist using VCS with the same testbenches as the standard RTL tests
These tests REQUIRE the synthesis step of the ASIC flow for this project to be completed such that the BRGTC6_post-synth.v file is produced in the asic/build/ directory, as well as the path to the standard view for the TSMC 65nm GP PDK to be available to the user so that the standard cell and IO cell Verilog source files are available
Build the test using make <module>-test-vcs-ffgl in the test/build/ directory
The executables for these tests will be of the form ./<directories>/<module>-test/<module>-test-vcs-ffgl-out/<module>-test-vcs-ffgl-exec
Only the DualLink tests support this mode

VCS Back-Annotated (BA)

Performs a back-annotated gate-level simulation (includes delays calculated during PnR) of the post-PnR netlist using VCS with the same testbenches as the standard RTL tests
These tests REQUIRE every step of the ASIC flow through PnR to be completed such that the post-pnr.vcs.v file is produced in the asic/build/ directory, the sdf files produced by the PnR step in asic/build/ directory, as well as the same standard view in FFGL testing for the standard cell and IO cell Verilog source files
Build the test using make <module>-test-vcs-ba in the test/build/ directory
The executables for these tests will be of the form ./<directories>/<module>-test/<module>-test-vcs-ba-out/<module>-test-vcs-ba-exec
Only the DualLink tests support this mode
Verilator nor VCS can accurately simulate metastability resolution as would happen on silicon, and so X’s will be falsely propagated and the test will fail. To prevent this, use the -ucli -i ../utils/timing_checks/DualLinkV4-test-no-sync-xprop.ucli option when executing any of the V4 integration tests so that X-propagation is disabled for the synchronizer inputs. Note that the timing violations will still be displayed so that the user is aware of what is actually occurring in the test, but X’s will not be propagated by the first stage flop in the relevant synchronizers

Additional Flags for Executables 

+dump-vcd=<file-path>.vcd - dumps the variables to a .vcd file with the specified path
+dump-saif=<file-path>.vcd - ONLY AVAILABLE FOR FFGL OR BA TESTING OF DUALLINK TESTS, dumps the switching activity to a .saif file with the specified path for power analysis
+verbose - prints more details in the console about the specific run
+test-case=<n> - only runs test case n as listed in the specified test

CMakeLists File 

CMakeLists.txt File Structure 

CMake is used for building and running all test cases and modes as described above
Initial steps
- Prints the project name, authors, etc. to the console
- Sets directories to local variables for use by build targets
- Defines common flags to be used for all invocations of Verilator or VCS - these can be changed depending on the need of the user
Test target generation
- FFGL test target is generated with a function to call VCS with the appropriate arguments and file inputs
- BA test target is generated with a function to call VCS with the appropriate arguments and file inputs
- RTL/coverage test target is generated with a function to call both VCS and Verilator RTL tests with the appropriate arguments and file inputs, adds the Verilator RTL test to the ctest list, as well as creates a coverage target dependent on the Verilator RTL target
Test target generation - see Adding Tests below

Adding Tests 

Create new file in associated subdirectory in brgtc6/test with the form of <test_name>-test.sv and follow same structure as other testbenches to hook up the module
In CMakeLists.txt follow the same structure as other tests listed to add the test at the bottom of the file, where an RTL/coverage test, FFGL test, or BA test is specified by calls to different target generation functions

Parameterization 

Testbench parameterization is handled in the Top module of each testbench by using a generate statement to create multiple, independent instances of the given testbench
Each instance obtains its parameters via localparam arrays specified at the beginning of Top
Each testbench also has three inputs and outputs:
- go - tells the testbench when to start running its tests as specified in its run() task (see the bottom of the testbench for an example of how this go signal is detected in an always block
- pass - tells Top if the testbench has passed all of its tests
- done - tells Top if the testbench has finished executing all of its tests
Top will wait for all testbenches to assert their done signals, after which it will check to see if all testbenches have asserted their pass signals. If at least one of the testbenches has not asserted its pass signal, Top will print out a fail message to indicate the overall failed status, otherwise it will print out a success message to indicate the overall passed status

Controlled Randomization 

Randomization is handled through “seeding the generator” within each call to a specific test case. Each test case task executes as follows where the seed can be passed into the task as an input or else is assigned a default value (note the call to $urandom after seeding the generator is still as a task - this is important since Verilator will not exhibit the proper behavior otherwise):
- integer dummy_rand = $urandom(seed);
- integer rand_num1 = $urandom();
- integer rand_num2 = $urandom();
- and so on…
In the run() task of each testbench, a specific seed value can be passed in as an input to the individual test case, ensuring the same sequence of values for every call to $urandom is produced for that test case every time, such that the exact same outputs are achieved for every run
If the seed is not provided, the test case seed is calculated as seed = get_system_time_seed() + $time; . The get_system_time_seed() function is called through the DPI interface from a simple C++ function provided in the test/utils folder to provide a unique number (at least at an interval of seconds) for each run of the testbench, while the extra $time term is added so that different test cases within the same testbench will have different seeds since the aforementioned C++ function will provide the same value to each test case for a particular run
A duplicate test case that specifies the seed can easily be added to the run() function so that the same outputs and sequence of events can be tested on each run of the testbench in case a specific randomization triggers a corner case

GitHub Actions 

This repository supports GitHub Actions with simulation by Verilator. The workflow configuration is located in brgtc6/.github/workflows/default-regression.yml
Here are the steps it takes to run the regression tests on one of GitHub’s remote machines:
- Checks out the repository
- Installs Verilator directly as a tarball from the Pymtl GitHub
- Verifies the Verilator version
- Installs CMake with apt-get
- Builds and runs all tests listed in the CMakeLists.txt file using the make check target
Results can be seen on the repository home page with a green check indicating success or a red X indicating failure next to the latest commit pushed - note that these tests start and run automatically when any commit is pushed to remote
