Decode Issue Unit (DIU)

The Decode-Issue Unit (DecodeIssueUnit) decodes p_num_fe_lanes instructions per cycle in parallel, renames architectural registers to physical registers, reads source operand values, and issues up to p_num_pipes instructions per cycle to the execute units via per-pipe issue queues. Because all instructions in a fetch block travel together, the DIU also identifies and handles control-flow instructions within the block before any younger instructions in the same block are allowed to dispatch.

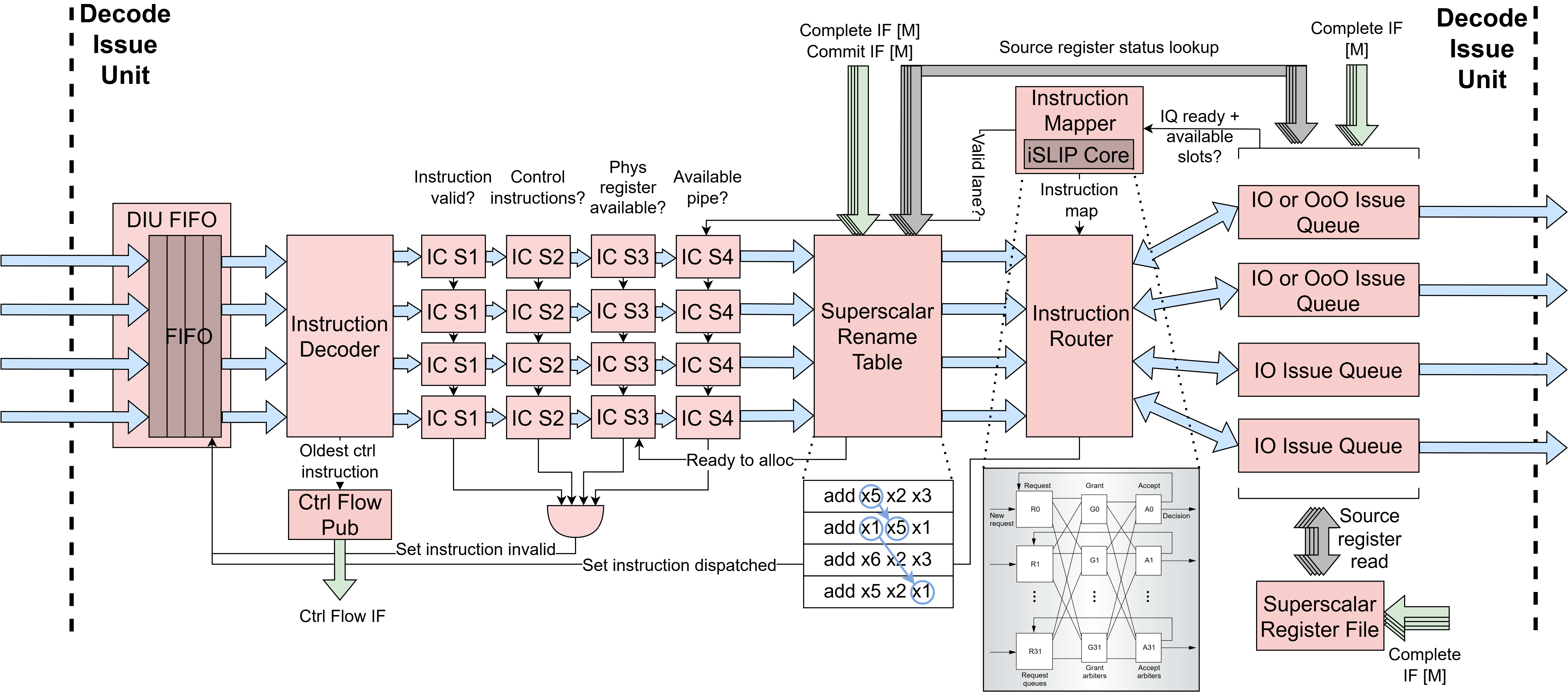

As shown in the diagram below, each frontend lane has its own InstDecoder and ImmGen instance (wrapped in SSDecoder) that decode the instruction word and generate the immediate value independently. The SSRenameTable allocates physical registers for all lanes simultaneously with inter-lane forwarding of destination register mappings to handle intra-block dependencies. Instructions are then routed from the p_num_fe_lanes input lanes to the p_num_pipes output issue queues via a two-stage crossbar: the SSInstMapper computes the lane-to-pipe mapping using an iSLIP-based matching engine, and the SSInstRouter muxes instruction data according to the mapping. Each issue queue is either the in-order IssueQueueInOrder or the out-of-order IssueQueueOOO, with its own register file read ports for independent operand resolution.

A picture of the Decode Issue Unit

Instruction Window FIFO: DIUFifo

The DIU uses a DIUFifo to buffer fetched instruction blocks between the fetch and decode-issue stages. The FIFO wraps a FifoBypass and presents an instruction-window abstraction with per-lane editable head state. Each lane in the head entry carries a 2-bit inst_status field with three states: INVALID (2'b00), READY (2'b01), and DISPATCHED (2'b10).

The decode-issue pipeline reads the head entry each cycle and writes back per-lane status edits: lanes that fail instruction checks for a terminal reason are marked INVALID, and lanes that successfully dispatch are marked DISPATCHED. These edits are maintained in shadow registers that overlay the FIFO head entry and reset when the head is popped or the FIFO is cleared. The head entry is popped (and the window advances) only when every lane in the current entry is either invalid, dispatching this cycle, or already dispatched, keeping all instructions in the fetch block together.

The FIFO is reset on ctrl_flow_sub.redirect_val (an external redirect from an XU) and cleared on ctrl_flow_pub_val_comb (an internal redirect from a JAL/JALR dispatch in the current window).

Instruction Check Stages

Dispatch eligibility is evaluated through four cascaded InstCheck stages per lane, each gating on the result of the previous stage:

  • S1 – Validity: Checks that the FIFO entry is valid (F_curr[i].val), the instruction status is not INVALID, and the decoder recognizes the instruction. This is the first filter and its pass output gates all subsequent stages.

  • S2 – Control-instruction ordering: Enforces ordering constraints around control-flow instructions (branches and jumps). The DIU scans the current window for the oldest undispatched control instruction (JAL/JALR/BRX) using wrap-around-safe sequence-number age comparisons via SSSeqAge. For BRX instructions, younger instructions in the window are blocked from dispatching until the branch’s source operands are ready and it can be dispatched. For JAL/JALR instructions, the oldest control instruction must be able to dispatch (pass S4) before younger instructions proceed. Instructions younger than the oldest control instruction are also blocked when a redirect is pending on ctrl_flow_sub.

  • S3 – Physical register allocation: Checks that a free physical register is available for allocation (via alloc_rdy) for instructions that write a destination register. Lanes are checked in order, with each lane gating on the previous lane’s allocation success to prevent over-allocation.

  • S4 – Structural hazard (crossbar routing): Checks that the instruction was successfully routed to an issue queue by the SSInstMapper (i.e. the lane_val signal is asserted). Lanes are again checked in order to preserve dispatch ordering.

The invalidate outputs from the check stages are OR-reduced per lane to determine whether to mark a lane INVALID in the instruction window. Only terminal failures (e.g. the fetch unit already flagged the lane INVALID at S1, or the decoder did not recognize the instruction) lead to INVALID; transient failures (waiting on an older control-flow instruction, free list empty, or losing the iSLIP grant this cycle) leave the lane in its previous state so it re-runs the checks on the next cycle.

Control Flow Handling

Because multiple instructions are decoded simultaneously, the DIU must handle the case where the current window contains control-flow instructions alongside younger instructions that should not be issued. The DIU scans all lanes each cycle to find the oldest undispatched control instruction (JAL/JALR/BRX), tracking its lane index, sequence number, and whether it is a branch (BRX) via oldest_ctrl_inst_found, oldest_ctrl_inst_idx, and oldest_ctrl_inst_is_brx.

For JAL/JALR instructions, when the oldest control instruction dispatches, the DIUCtrlFlowPublisher computes the jump target and publishes a redirect on the ctrl_flow_pub interface via the ControlFlowNotif. For JAL instructions, the target is PC + imm; for JALR, the target is (rs1 + imm) & ~1, where rs1 is read from the control pipe’s register file port. When branch prediction is enabled, the publisher also checks whether the JAL was already predicted taken (via the predicted_taken flag propagated from the fetch unit); if so, the redirect is suppressed since the fetch unit is already fetching from the correct target, and only a bp_update_val is asserted to confirm the prediction to the branch predictor. For unpredicted JALs and all JALRs, redirect_val is asserted. The redirect signals are combinational, relying on the downstream control-flow arbiter to break the combinational loop back to the fetch unit.

The ctrl_flow_pub_val_comb signal is used internally to clear the DIUFifo immediately when a jump dispatches.

For BRX instructions, the DIU checks whether the oldest control instruction’s source operands are ready by performing a rename-table lookup through a dedicated port (port index p_num_pipes). If the sources are not ready, the S2 check blocks all instructions in the window from dispatching, ensuring no instruction younger than an unresolved branch is speculatively issued.

When a redirect arrives on the ctrl_flow_sub interface (from the CFU), the FIFO is reset, discarding all instructions in the current window.

Instruction-to-Pipe Mapper: SSInstMapper

The instruction-to-pipe mapper (SSInstMapper) computes a one-to-one mapping from p_num_fe_lanes frontend lanes to p_num_pipes back-end pipes using a shared ISLIPCore matching engine, which implements a modified version of the iSLIP algorithm.

First, a compatibility matrix is computed: for each (input lane, output pipe) pair, iq_compat_op is asserted when the instruction’s micro-op is supported by the pipe’s ISA subset (via in_subset checks), the instruction is valid, the queue is ready, and the queue has available slots. For pipes with p_pipe_bypass set, compatibility additionally requires that the instruction’s source operands are both ready (since bypass pipes issue combinationally with no buffering).

The matching is performed by ISLIPCore over p_num_iter iterations (defaulting to p_num_fe_lanes), each consisting of two phases:

  • Grant phase (age-based): Each output pipe examines all compatible, unmatched inputs and grants to the oldest one, determined by an AgePE priority element using wrap-around-safe age comparison via the oldest committed sequence number from SSSeqAge.

  • Accept phase (slot-based): Each input lane examines all outputs that granted to it and accepts the one with the most available issue-queue slots, determined by a SlotsPE priority element. Ties are broken in favor of the lower-indexed pipe.

After each iteration, matched inputs and outputs are removed from consideration (via input_free and output_free masks), and the next iteration attempts to match the remaining unmatched ports. The final match results across all iterations are OR-reduced to produce per-pipe iq_val and route_idx signals (selecting which lane feeds each pipe) and per-lane lane_val and lane_to_pipe_map signals (indicating which pipe the lane was matched to, if any).

Data Router: SSInstRouter

The SSInstRouter is a pure data router that muxes per-lane instruction data to per-pipe outputs based on the mapping produced by SSInstMapper. It consumes the route_idx, iq_val, and lane_to_pipe_map signals from the mapper and produces per-pipe iq_msg and iq_ins_try outputs for the issue queues. It also computes dispatch_go per lane, which is asserted when the lane passes all instruction checks and the target issue queue is ready.

Issue Queue Selection and Configuration

Each pipe’s issue queue type is determined by a set of configuration parameters:

  • ``p_pipe_bypass``: When set to 1, all pipes use bypass-mode issue queues (IssueQueueInOrder with p_bypass=1); when 0 (the default), only the control-subset pipe (the one whose ISA subset exactly matches p_ctrl_subset) uses bypass mode.

  • ``p_mem_subset``: Defines the memory instruction subset. Pipes whose ISA subset intersects p_mem_subset are automatically forced to use in-order issue queues, since there is no load-store queue in the memory execute unit.

  • ``p_all_iq_in_order``: When set, all issue queues use in-order issue regardless of pipe type.

Pipes that are neither bypass nor forced in-order use the out-of-order IssueQueueOOO described below.

In-Order Issue Queue: IssueQueueInOrder

The in-order issue queue (IssueQueueInOrder) is a circular FIFO that buffers decoded instructions and issues them to the execute stage strictly in program order once both source operands are ready. Each issue queue has its own pair of rename-table lookup ports and register-file read ports, enabling independent operand resolution per queue.

The queue maintains insert and dequeue pointers (ins_ptr and deq_ptr) to manage its circular buffer of entries. On insertion, the instruction’s decoded fields (micro-op, physical register addresses, immediate, PC, sequence number, etc.) are stored at the insert pointer. The avail_slots output communicates the remaining capacity to the SSInstMapper for load-balancing decisions.

On the dequeue side, the queue looks up the source physical registers of the head-of-queue instruction in the rename table via the rt_lookup_pending signals. If neither source operand is pending (both ready), the queue asserts the dequeue handshake and drives the operand values read from the register file onto the execute interface, along with the rest of the instruction fields. In-order issue is enforced by only ever considering the instruction at the dequeue pointer for issue.

The queue also supports a same-cycle bypass path: when the queue is empty and both the insert and dequeue handshakes are active simultaneously, the incoming instruction can bypass the entry storage entirely and be issued directly to the execute stage, avoiding the one-cycle latency of writing to and reading from the queue. When p_bypass is set, the queue operates in a fully stateless mode, acting as a combinational pass-through that gates the instruction based solely on operand readiness, with no internal storage. This bypass mode is what the control-flow pipe uses to keep branch resolution to a single cycle.

Out-of-Order Issue Queue: IssueQueueOOO

The out-of-order issue queue (IssueQueueOOO) is a drop-in alternative to IssueQueueInOrder that dequeues the oldest ready instruction rather than blocking on the in-order head. Source operand pending status is provided at insert time and tracked internally; the queue monitors completion notifications to clear pending bits, removing the need for rename-table lookups at dequeue.

The queue maintains a flat array of entries with per-entry valid bits and per-entry source pending bits. On insertion, a free slot is selected via a priority encoder. On dequeue, the queue computes per-entry readiness (both sources not pending, with same-cycle completion bypass) and selects the oldest ready entry using XOR-based wrap-around-safe age comparison against the oldest_seq_num from SSSeqAge. An entry j is considered older than entry i when (seq[j] < seq[i]) ^ (seq[j] < oldest) ^ (seq[i] < oldest). The oldest ready entry is priority-encoded to produce the dequeue index.

Like IssueQueueInOrder, the OOO queue supports a same-cycle bypass path when the queue is empty, issuing the incoming instruction directly if its sources are ready. When p_bypass is set, the queue operates in fully stateless bypass mode, identical to the in-order bypass behavior.

Sequence Age Tracker: SSSeqAge

The SSSeqAge module (in hw/util/) tracks the oldest committed sequence number by monitoring the commit interface. This value is shared across the DIU and the CFU/WCU arbiters to provide consistent wrap-around-safe age comparisons. See Sequence Numbers for the underlying algorithm.

Register File: SSRegfile

The physical register file is implemented by a single shared SSRegfile instance with p_num_pipes lookup ports, one per backend pipe so that every pipe can independently read its source operands. The register file also has p_num_be_lanes write ports driven by the completion interface from the WCU, one write port per backend lane.

Rename Table: SSRenameTable

The SSRenameTable supports p_num_fe_lanes simultaneous allocations with inter-lane destination register forwarding. The core data structures – a 31-entry rename table mapping architectural registers to physical registers with pending bits, and a free list tracking available physical registers – are unchanged from a single-lane rename table.

For multi-lane allocation, each lane has its own PriorityEncoder that selects the first free physical register from the free list. To prevent multiple lanes from allocating the same physical register, lane i’s priority encoder input filters out any physical register already selected by lanes 0 through i-1, creating a forward dependency chain across lanes.

The key addition over a single-lane rename table is destination register forwarding during source operand lookup. When lane k looks up the physical register for a source architectural register, it first reads the current mapping from the rename table, then checks whether any previous lane m (where m < k) in the same fetch block is allocating a new physical register for the same architectural register. If so, lane k uses lane m’s newly-allocated physical register instead of the stale table entry. This ensures that within a single fetch block, a later instruction correctly reads from the destination of an earlier instruction (e.g. add x1, x2, x3 followed by add x4, x1, x5 in the same block will have the second instruction’s x1 source point to the physical register just allocated by the first instruction).
