Fetch Unit

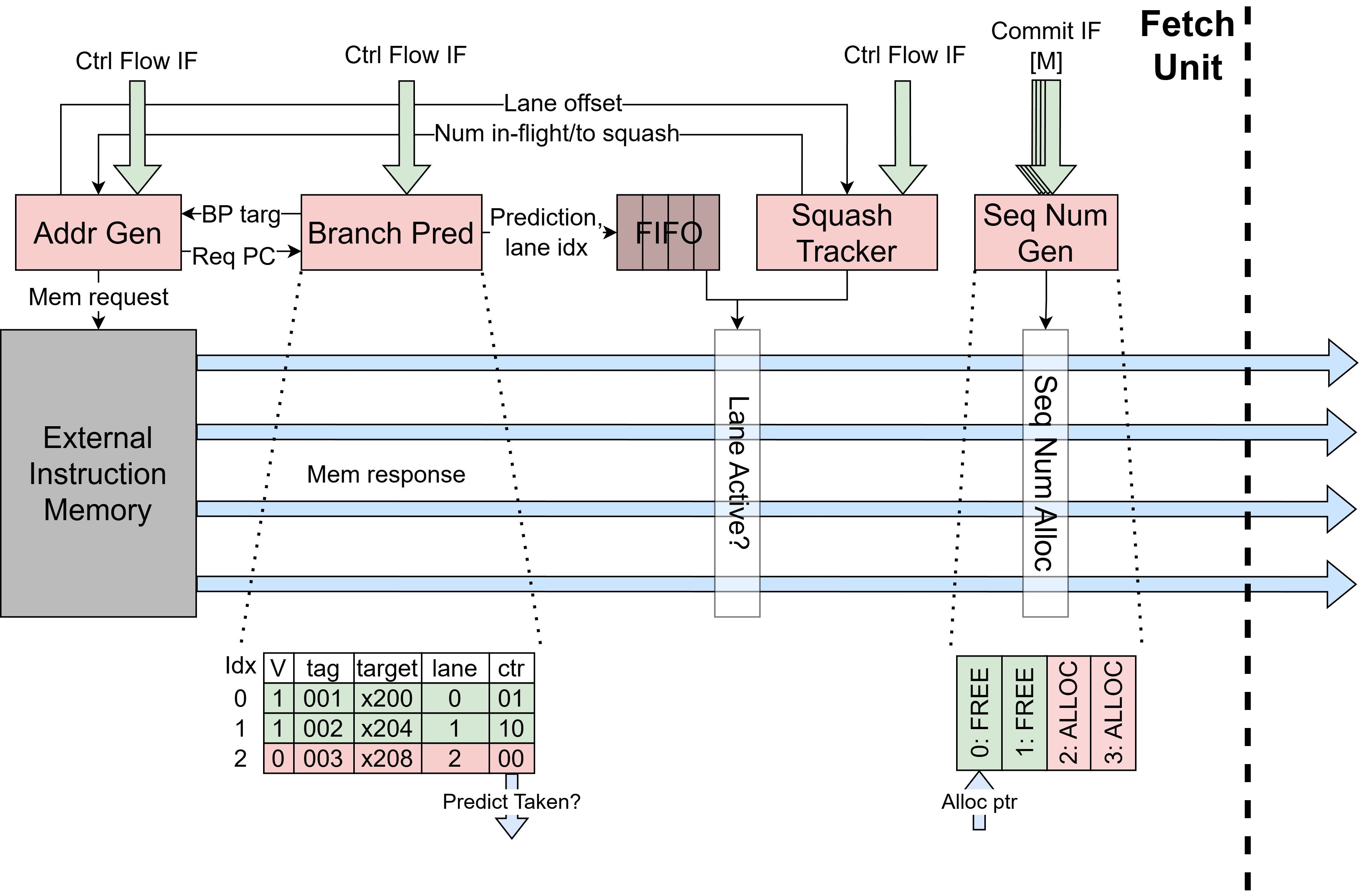

The Fetch Unit (FetchUnit) is a FIFO-less superscalar fetch unit that fetches aligned blocks of p_num_fe_lanes instructions per cycle and supports control-flow redirects from downstream units. As shown in the diagram below, the fetch unit sends a single wide memory request per cycle and the response data is unpacked into p_num_fe_lanes instruction lanes that flow directly to the F__DIntf with no internal buffering. When a control-flow redirect occurs, the unit tracks all in-flight requests via num_to_squash and drops them as they return from memory, then restarts fetching from the redirect target address. The redirect target is decomposed into a fetch-block base address (aligned to p_num_fe_lanes words) and a lane offset within that block, which determines which lanes in the first post-redirect fetch block carry valid instructions.

Each lane carries a 2-bit inst_status field (READY or INVALID) on the F__DIntf interface. Lanes with valid instruction data are marked READY; lanes that should be ignored (e.g. before the restart offset or during a stale-response drop) are marked INVALID. The downstream decode-issue unit uses this status to skip invalid lanes without additional checking. Each lane also carries a predicted_taken flag (described below) that the decode-issue unit uses to suppress redirect publication for correctly-predicted JAL instructions.

Address Generator: FetchAddrGen

The FetchAddrGen module maintains the current fetch-block base address and produces the memory request address and valid signal. It handles three address sources in priority order: (1) a control-flow redirect from the ControlFlowNotif interface, which always takes priority and computes a block-aligned base address from the redirect target; (2) a branch-predictor redirect (when p_enable_branch_pred is set), which steers the next fetch to the predicted target; and (3) sequential fetch, which advances the base address by p_num_fe_lanes * 4 bytes after each completed request.

For redirects, FetchAddrGen decomposes the redirect address into a fetch-block base address and a ctrl_flow_lane_offset indicating which lane within the block the redirect corresponds to. For not-taken mispredictions, the module redirects to PC + 4 (the fall-through address) instead of the branch target. The request-valid signal is gated by the num_in_flight and num_to_squash counts to prevent exceeding the maximum number of in-flight requests.

Control Flow Redirect Tracker: FetchSquashTracker

The FetchSquashTracker tracks the number of in-flight fetch requests and the number of stale responses that must be drained after a control-flow redirect. It maintains two counters: num_in_flight (incremented on each memory request, decremented on each consumed response) and num_to_squash (set to the current in-flight count on a redirect, decremented as stale responses arrive). The should_drop output is asserted when a redirect is active or stale responses remain, causing the datapath to discard incoming memory responses.

After a redirect, the first valid fetch block may start at a mid-block lane. The needs_ctrl_flow_restart flag tracks whether the next good block needs lane masking, and ctrl_flow_restart_offset records which lane to start from. These signals persist until the first valid fetch block is transferred to decode, after which all subsequent fetch blocks use all lanes normally.

Branch Predictor: BranchPredictor

When the p_enable_branch_pred parameter is set, the fetch unit instantiates a BranchPredictor that predicts whether a fetch block contains a taken branch and, if so, redirects the next fetch to the predicted target. The predictor uses a set-associative Branch Target Buffer (BTB) with p_btb_entries entries and p_btb_ways ways (p_btb_ways=1 gives direct-mapped, p_btb_ways=p_btb_entries gives fully-associative). Each BTB entry stores a tag, target address, 2-bit saturating counter for direction prediction, and the lane index of the branch within the fetch block. FIFO replacement is used when all ways in a set are occupied.

On each fetch request, the predictor looks up the BTB using the fetch-block base address. If a matching entry is found and the counter’s MSB is set (predicting taken), the predictor asserts redirect_val and drives redirect_target with the BTB’s stored target, causing FetchAddrGen to steer the next fetch to the predicted address. The pred_taken and branch_lane signals are pushed into a prediction FIFO alongside the fetch request so that the correct prediction metadata accompanies the memory response when it returns.

On the response side, the prediction FIFO is popped, and lanes beyond the predicted branch lane are marked inactive (lane_active is deasserted), preventing the fetch unit from sending instructions that follow a predicted-taken branch. The predicted_taken flag on the F__DIntf is set for the branch lane itself, allowing the decode-issue unit to recognize that the JAL was predicted and suppress a redundant redirect.

Updates to the BTB arrive via the ControlFlowNotif interface when a branch or JAL resolves at execute time. The bp_update_val signal triggers the update, which increments or decrements the saturating counter for existing entries, or allocates a new entry (initializing the counter to weakly-taken or weakly-not-taken) on a miss.

Sequence Number Generator: SeqNumGen

The SeqNumGen module manages a circular buffer of 2^p_seq_num_bits sequence numbers using a head and tail pointer. Each cycle, it can allocate up to p_num_fe_lanes consecutive sequence numbers from the head pointer for newly fetched instructions. Committed instructions are marked free via the commit interface, and the tail pointer advances in-order over consecutive free entries, reclaiming up to p_reclaim_width entries per cycle. On a control-flow redirect, all sequence numbers younger than the redirect sequence number are freed and the head pointer resets to ctrl_flow.seq_num + 1. Allocation can occur simultaneously with a redirect – the new sequence numbers start from the post-redirect head pointer position.

When the redirect target address is aligned to the base of a fetch block (i.e. the lane offset is zero), the restart is straightforward. The fetch unit begins requesting the aligned fetch block starting at the redirect target, and since the target corresponds to lane 0, all lanes in the first post-redirect fetch block contain valid instructions. The ctrl_flow_restart_offset is zero, so D_inst_status and alloc_rdy are asserted for every lane, and each lane receives a sequence-number allocation as normal.

When the redirect target address falls in the middle of a fetch block (i.e. the lane offset is nonzero), the fetch unit still fetches the entire aligned block but must invalidate the lanes before the target. The ctrl_flow_restart_offset register captures which lane the redirect target corresponds to, computed as the word offset within the fetch block. On the first post-redirect fetch block, D_inst_status is set to READY and alloc_rdy is asserted only for lanes at or above ctrl_flow_restart_offset – earlier lanes are marked INVALID and do not receive sequence-number allocations. The needs_ctrl_flow_restart flag ensures this partial-block behavior persists until the first valid fetch block is transferred to decode, after which all subsequent fetch blocks use all lanes normally.

For more on the semantics of sequence numbers and their use in age comparisons throughout the rest of the pipeline, see Sequence Numbers.
